Stainless Steel Bowl Feeder

Our is made up by mainly stainless steel grade 304 & 316. This type of bowl is mainly using hand work process to bend and roll for completing the bowl module. Our stainless steel bowl products comment sizing is vary from inner diameter 150mm until diameter 460mm.We do also custom made for bigger sizing of bowl depending on customer need. There are various type of stainless steel bowl feeder which is cylindrical bowl, cone bowl, Step bowl, rotary bowl, centrifugal bowl and other type of combination bowl depending on feeding units. There are many industry field that using stainless steel bowl which from toys, medical, cosmetic, electronic, food, automotive to feed their products in only orientation for assembling, cleaning, counting, filling purpose.

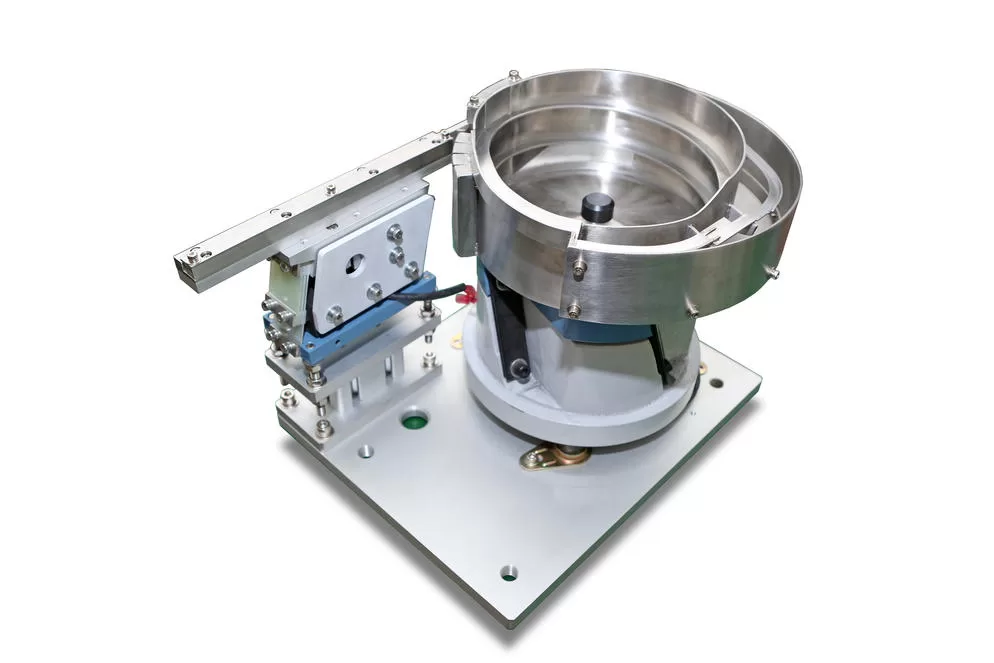

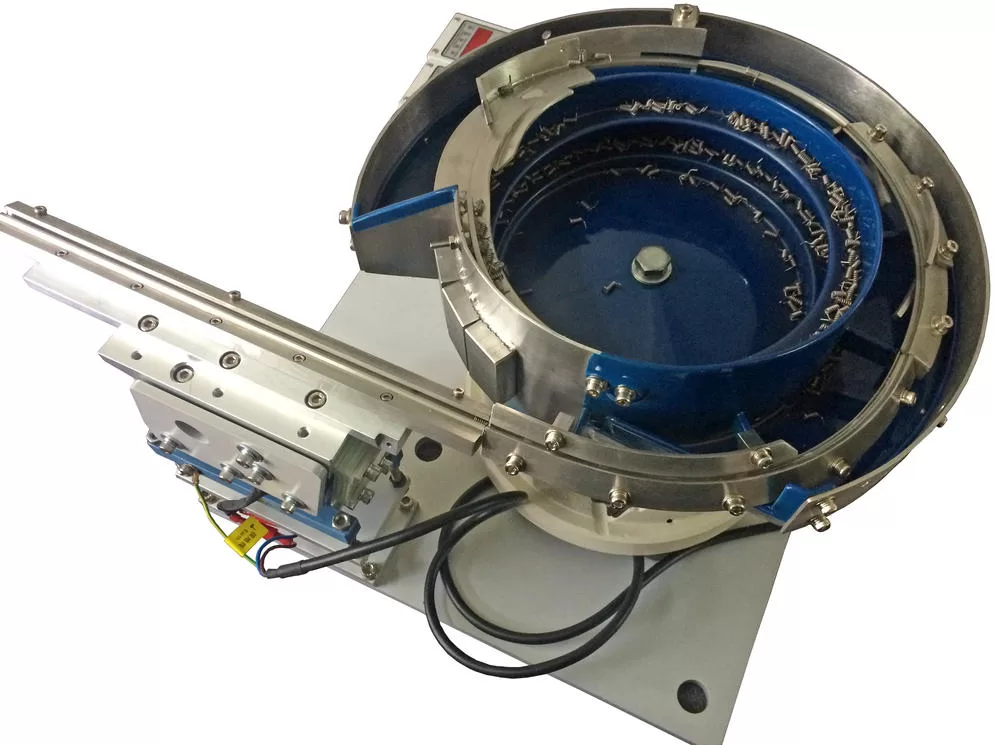

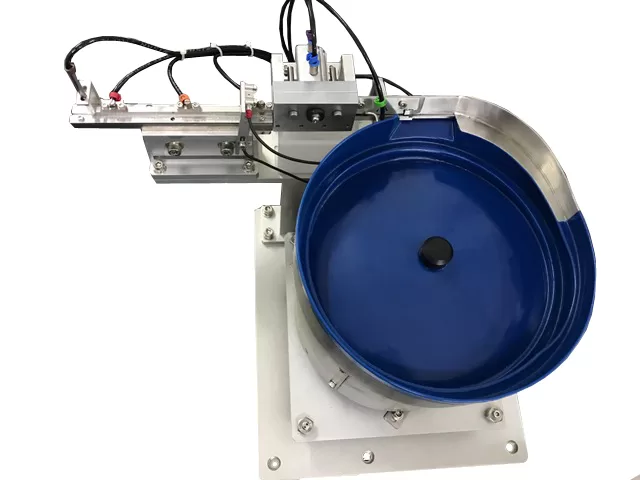

•    Vibrator Bowl With In-Line Feeder

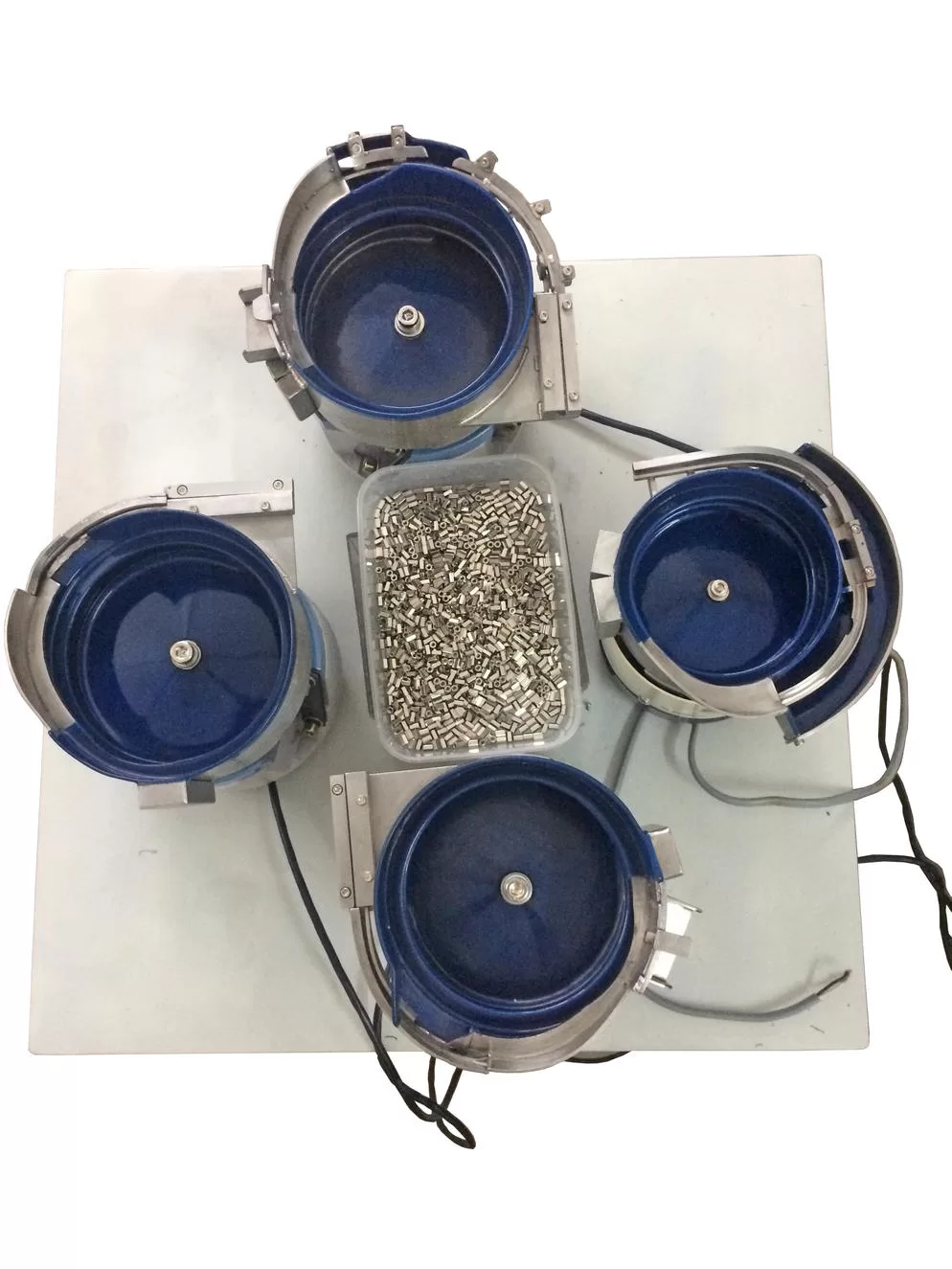

•    Mini Size Bowl Module

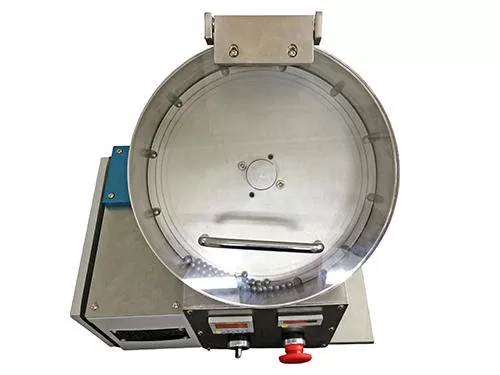

•    Rotary Bowl Feeder

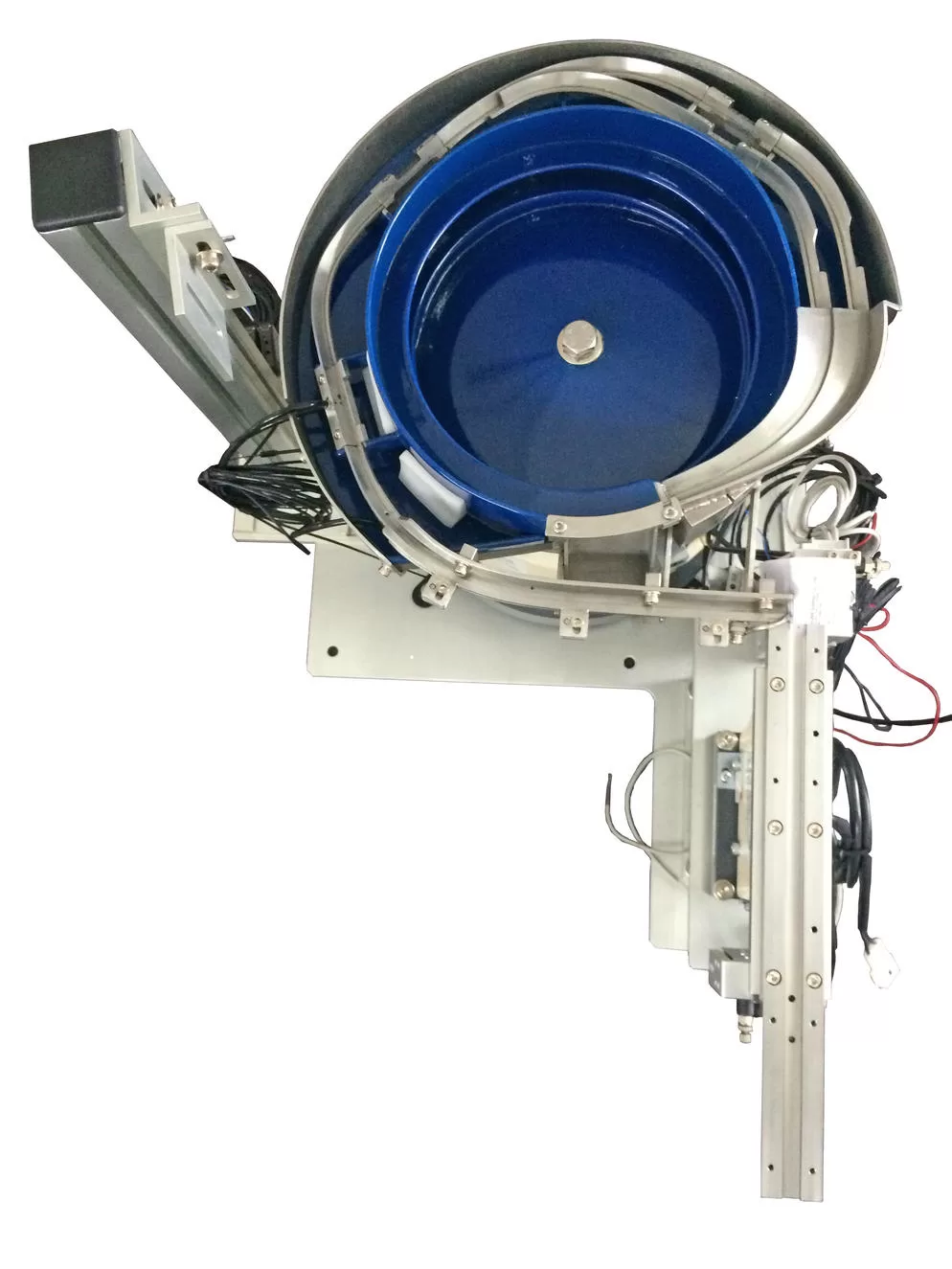

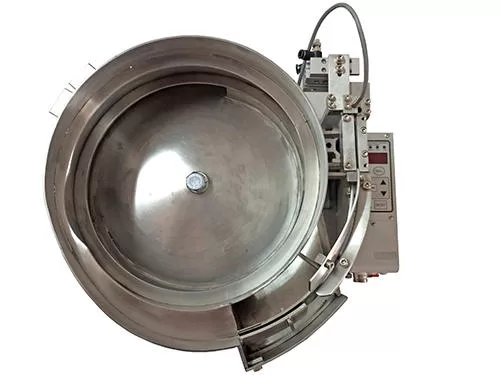

•    Mini Bowl With Singulation Module

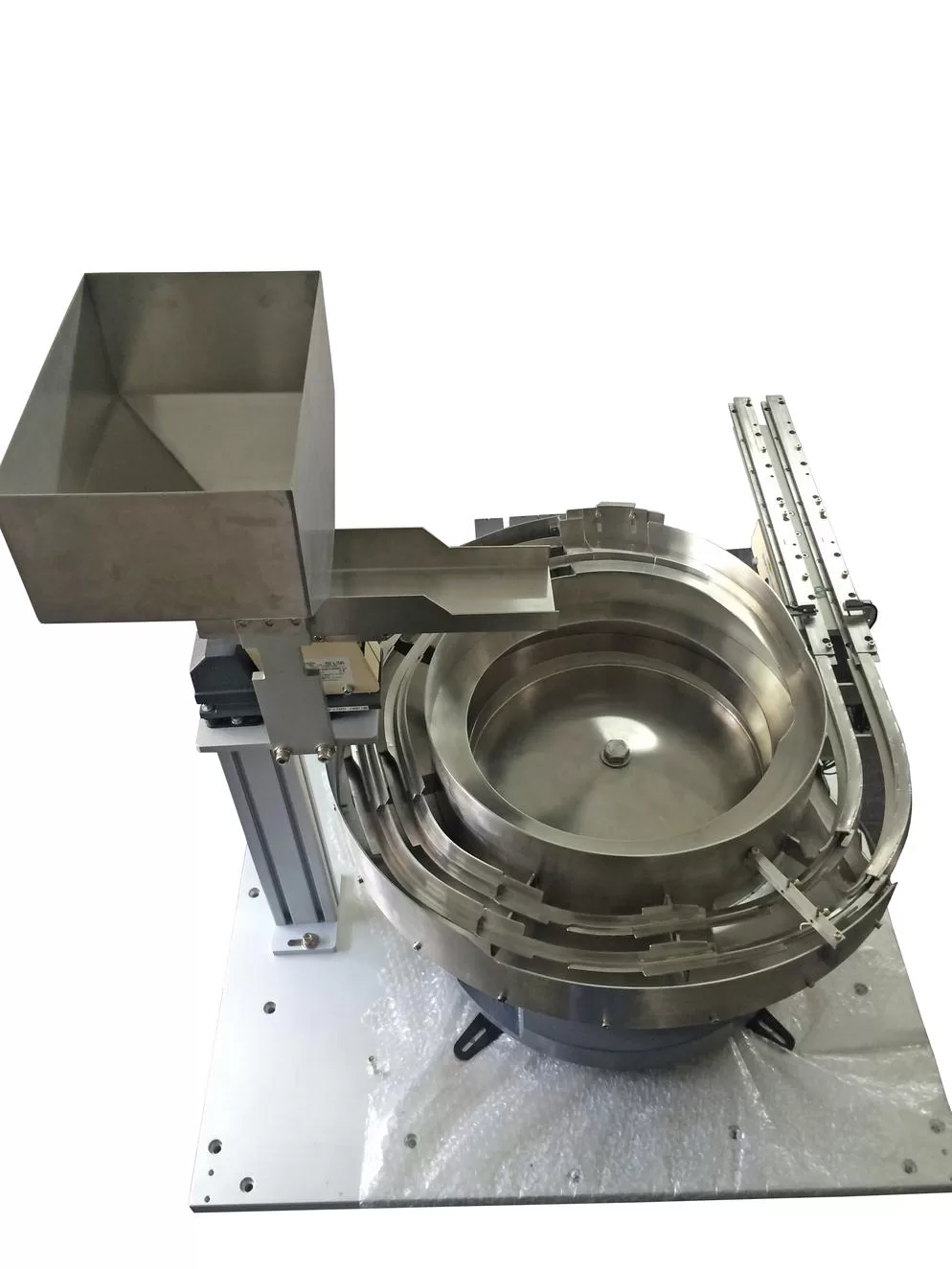

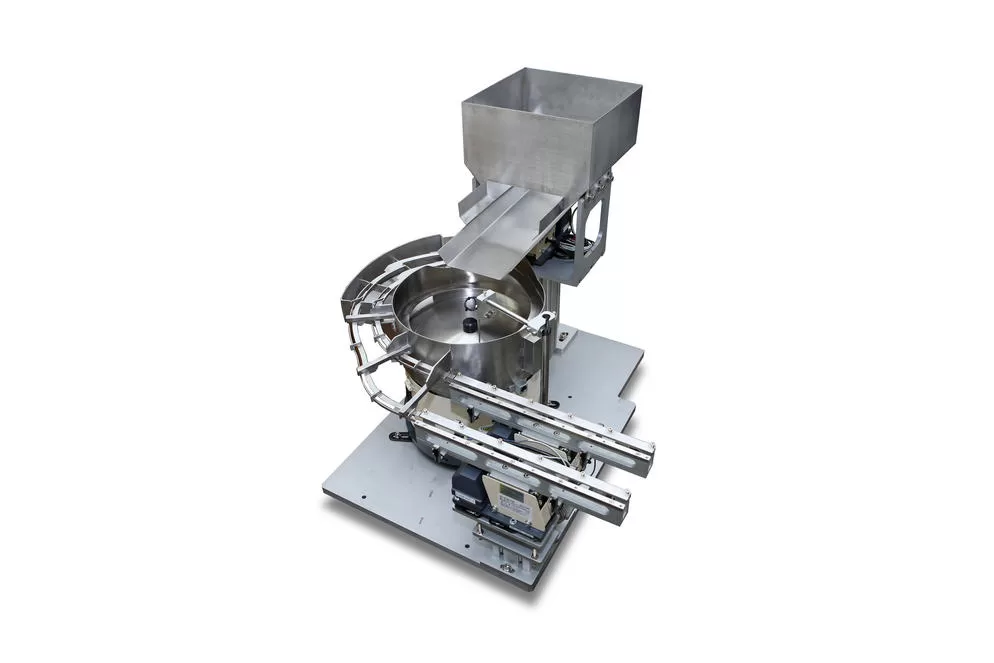

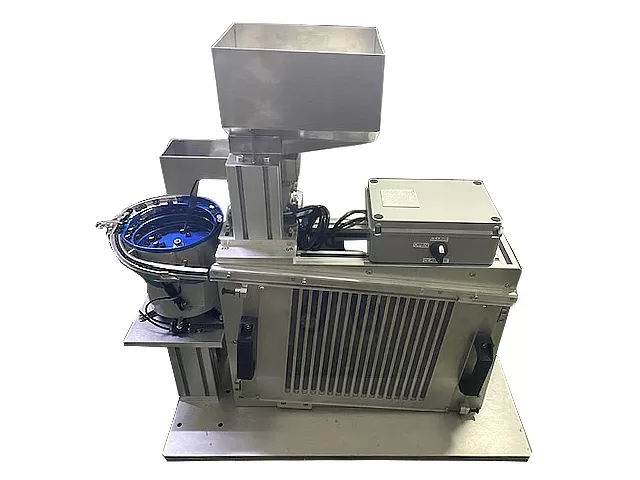

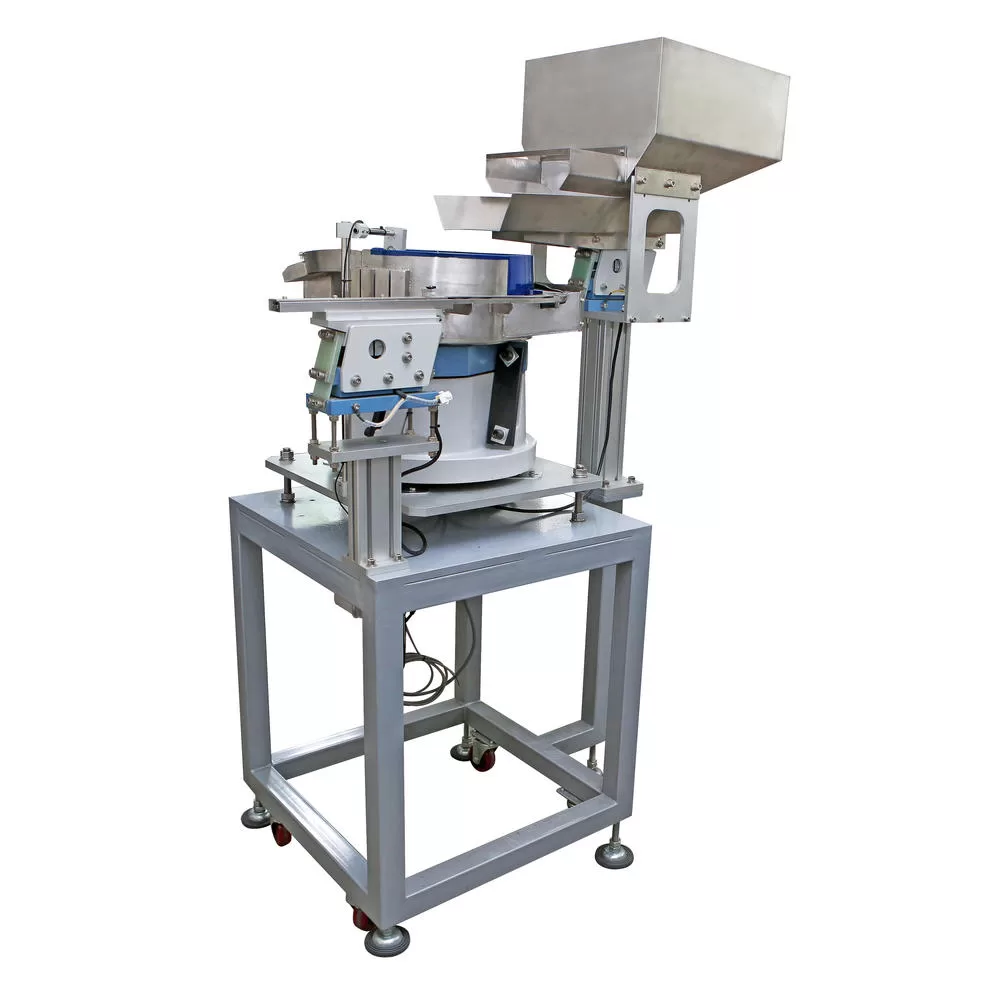

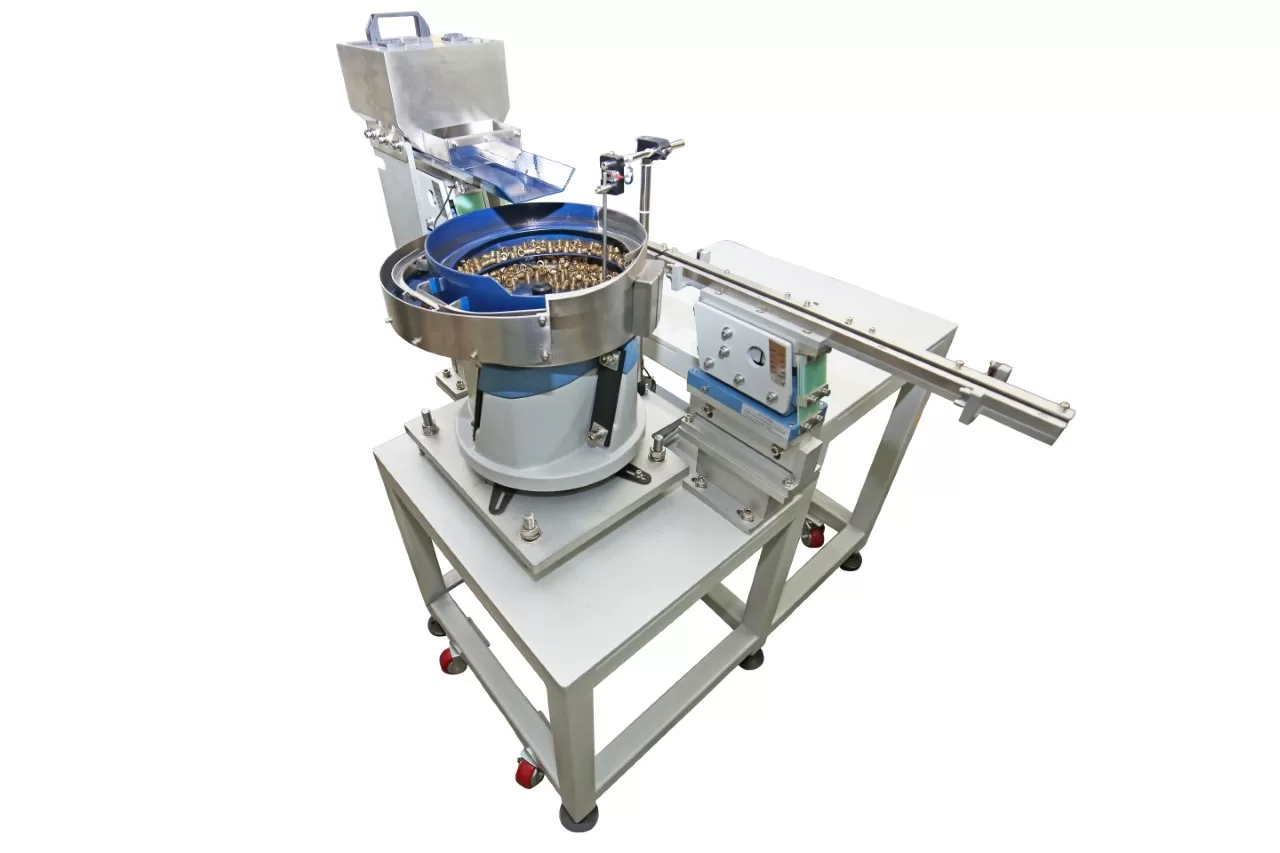

•    Bowl With Hopper And In-Line Feeder Module

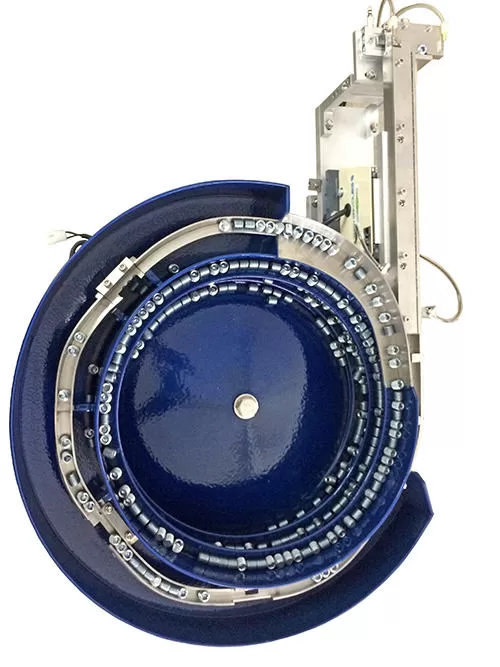

•    Bowl With Singulation And In-Line Feeder Module
•    Vibrator Bowl With Structure Base Module

Bowl Module:
•    Bowl material: SUS304 /SUS316
•    Internal Finishing: PU coating(Blue)
•    External Finishing: Hairline polishing
•    Vibrator : Coil type vibrator with controller(220v,50-60Hz)

In-Line Feeder Module:

•    Feeder type: Coil type feeder with controller(220v,50-60Hz)
•    Lenght of track: 400mm
•    Tracking spec: Customize design with overflow sensor Z axis adjustable height

Hopper Module:

•    Feeder type: Coil type feeder with controller(220v,50-60Hz)
•    Lenght of tray: 500mm
•    Hopper loading quantity: 2000 Pcs
•    Empty sensor for auto parts loading.

Structure Module:

•    Square hollow pipe with mild steel structure
•    Leveling stand for height adjustable and caster wheel attach together.
